Longi on Grid Solar Power System 525w 530w 535w 540w Bifacial Solar Panels Solar Cells Solar Panels

Name: Longi on Grid Solar Power System 525w 530w 535w 540w Bifacial Solar Panels Solar Cells Solar Panels
Brand: Longi
Price: 0.10 USD

Wholesale Longi on Grid Solar Power System 525w 530w 535w 540w Bifacial Solar Panels Solar Cells Solar Panels from china suppliers

Brand Name : Longi

Model Number : LR5 - 72HBD 520~545W

Place of Origin : Fujian, China

Cell size : please consult customer service

Type : PERC, Half Cell, Bifacial, Double-glass

Panel Dimensions : 2256x1133x35mm

Panel Efficiency : 20.3%~21.3%

Product Name : On grid solar power system

Solar Cells : Monocrystalline

Cell Orientation : 144(6x24)

Weight : 32.3kg

Junction Box : IP68,three diods

Glass : Dual Glass3.2.0mm Coated Tempered Glass

Application : Solar Power system

Warranty : 30 year linear warranty

MOQ : 100 watts

Price : $0.10-0.13 / watt

Contact Now

Product Description

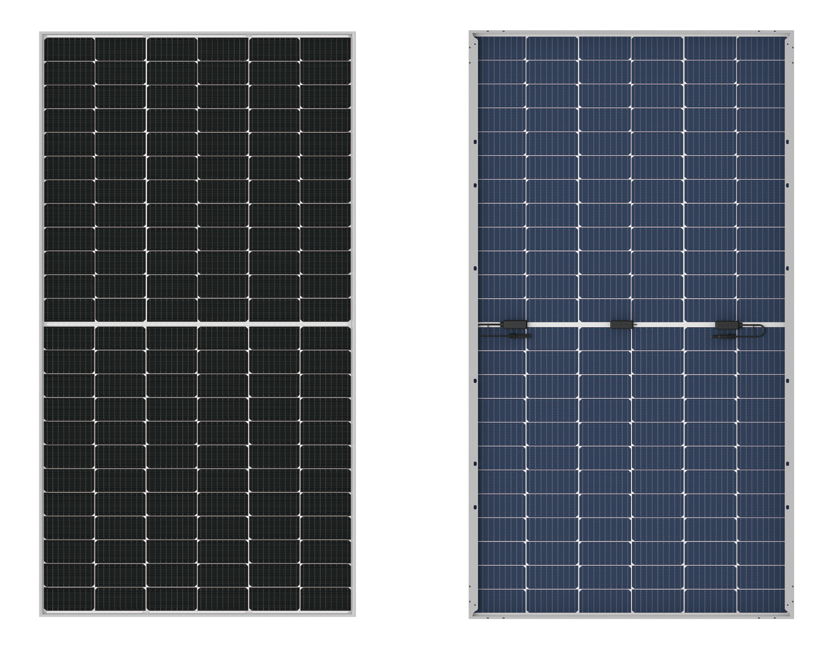

Longi on Grid Solar Power System 525w 530w 535w 540w Bifacial Solar Panels Solar Cells Solar Panels

Electrical Characteristic
Module Type	LR5-72HPH 520~545M						LR4-72HBD-430	LR4-72HBD 435	LR4-72HBD 440	LR4-72HBD 445	LR4-72HBD-450
Rated output (Pmp/Wp)	520	525	530	535	540	545
Open Circuit Voltage(Voc)	48.9	49.05	49.20	49.35	49.50	49.65
Short Circuit Current(Isc)	13.57	13.65	13.71	13.78	13.85	13.92
Maximum Power Voltage(Vmpp)	41.05	41.20	41.35	41.50	41.65	41.80
Maximum Power Current(Impp)	12.67	12.75	12.82	12.90	12.97	13.04
Module efficiency(%)	20.3%	20.5%	20.7%	20.9%	21.1%	21.3%
Standard Test Condition(STC)	Irradianc 1000W/m², Cell Tempera ture 25ºC, AM1.5
Mechanical Characteristic
No.of Cells	144(6x24)
Weight	32.3kg
Dimension	2256x1133x35mm
Junction Box	IP68,three diodes
Output Cables	4mm2,positive 400mm /negative 200mm ,length can be customized
Glass	Dual glass,3.2mm coated tempered glass
Frame	Anodized aluminum alloy frame
Temperature RatingSTC
Temperature Coefficient of Isc(-jsc)	+0.050%/
Temperature Coefficient of Voc(_Voc)	-0.284%/
Temperature Coefficient of Pmax(_Pmp)	-0.350%/

DJSC Solar, founded by a passionate team with over 35 years experience of solar industry, is committed to bring quick and
professional service to our customers in all aspects of solar products and projects.

Being the top distributor of Tier 1 solar product brands including LONGi, Sungrow, Trina, JA, Solis, Growatt, Goodwe, DJSC Solar provides not only solar panels and solar inverters, but also system integration for on-grid systems, off-grid systems, energy storage systems, etc. Customer can enjoy One-Stop Turnkey Solution here with high performance solar products at competitive cost.

Besides, DJSC solar has a strong expert technical team, which can also provide you best solution and after-sales service. In the future, through more localized operation,we will build up the global network organization, to ensure best products and convenient service for our customers.

Payment Term	T/T	EXW	30% T/T in advance, balance paid before shipment.
			30% T/T in advance, balance paid before shipment.		FOB
				CNF	30% T/T in advance, balance paid against copy of B/L
				CIF	30% T/T in advance, balance paid against copy of B/L
Delivery Time	Ship from factory within 15 working days after received the deposit

Longi on Grid Solar Power System 525w 530w 535w 540w Bifacial Solar Panels Solar Cells Solar Panels Images
